Bimetal Thermostat Switch 10a 16a 125v 250v Copper Head Thermostat ul cqc tuv ksd 301

FOB Reference Price:Get Latest Price
US $0.15-0.5 / Piece | 1000 Piece/Pieces (Min. Order)
Supply Ability:
300000 Piece/Pieces per Month
Port:
FOSHAN
Report Suspicious Activity
Overview
Quick Details
Type:
Other Home Appliance Parts
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
KH
Model Number:
KSD301
Cover:
fixed/ moveable/ screw
Case:
bakelite/ceramic
Temperature range:
0~270°C
Switch Type:
Normally Closed/Open
Terminal's size:
customized
Dielectric strength:
AC,2500V for 3 seconds
Usage:
appliance
Contact capacity:
100,000 times
Safety Approval Certificate:
UL.TUV.CB.CQC,ROHS ,REACH
Product name:
thermostat
Packaging & Delivery
Packaging Details
100pcs per inner box, 20 box(2000pcs) per carton, the carton size is 45CM(L)*23CM(W)*26CM(H)
Delivery Time
Shipped in 12 days after payment
Product Description

Bimetal Thermostat Switch 10a 16a 125v 250v Copper Head Thermostat ul cqc tuv ksd 301









Description

KSD301 series snap-action use in a great variety of small home appliances, such as portable icebox, to provide temperature control or temperature protection. This can be divided into 7 sub-series: KSD301,KSD301R,KSD301G,KSD301GR,KSD301-SG,KSD301R-M,KSD301,GR-M





SAFETY CERRIFICATE





TypeMax.Operating valuesRated vlotageRated currentLife
KSD301 SERIES185℃250VAC5A,10A,16A10,000 cycles
KSD301R SERIES185℃250VAC5A,10A,16A10,000 cycles
KSD301G SERIES270℃250VAC5A,10A,16A10,000 cycles
KSD301GR SERIES270℃250VAC5A,10A,16A10,000 cycles
KSD301R-M SERIES185℃250VAC5A,10A,16A10,000 cycles
KSD301GR-M SERIES270℃250VAC5A,10A,16A10,000 cycles
UL CERRIFICATE
TypeMax.Operating valuesRated vlotageRated currentLife
KSD301 SERIES150℃125VAC5A,10A,16A10,000 cycles
KSD301-R SERIES150℃125VAC5A,10A,16A10,000 cycles
KSD301-G SERIES240℃125VAC5A,10A,16A10,000 cycles
KSD301-GR SERIES240℃125VAC5A,10A,16A10,000 cycles
KSD301-SG SERIES160℃125VAC5A,10A,16A10,000 cycles

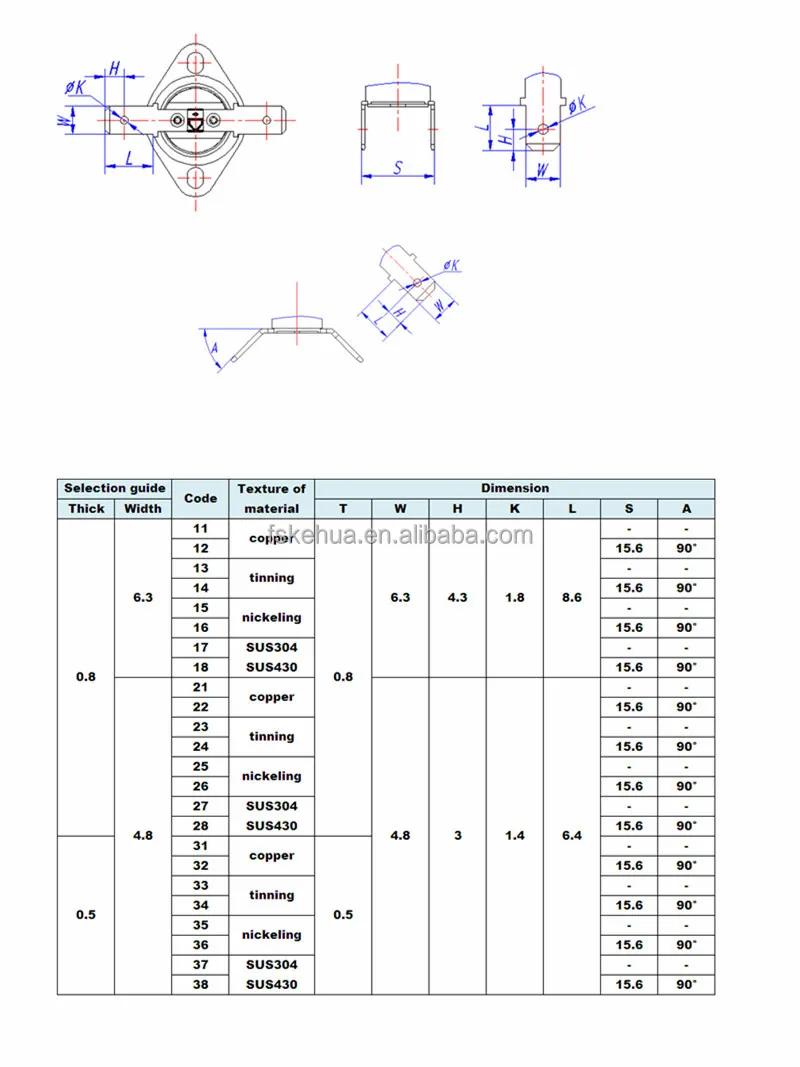

Dimension of bimetal thermostat
Terminals and covers(COVER CODE AND THER SKETCH)

THERMINAL


FAQ

  *TERMINALS AND COVERS OF BIMETAL THERMOSTAT CAN BE CUSTOMIZED  UNDER  YOUR  REQUEST. PLEASE REFER TO OUR SPECIFICATION. WELCOME TO OUR WEBSITE TO GET MORE INFORMATION ABOUT BIMETAL THERMOSTATS.
